ADMT4000, True Power-On Multiturn Sensor

.
The ADMT4000 is a magnetic turn count sensor capable of recording the number of rotations of a magnetic system even while the device is powered down.

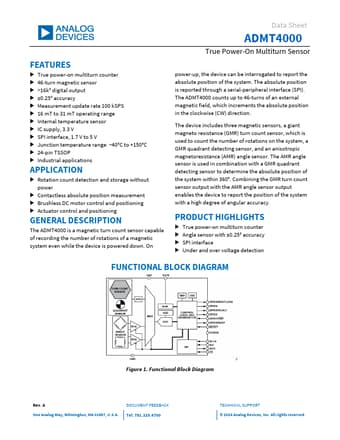

datasheet Preview Page 1 from Datasheet4u.com

ADMT4000-AnalogDevices.pdf

ADMT4000 Datasheet Preview — Preview of ADMT4000 PDF

Datasheet Details

Part number:

ADMT4000

Manufacturer:

Analog Devices ↗

File Size:

1.24 MB

Description:

True Power-On Multiturn Sensor

Features

* True power-on multiturn counter
* 46-turn magnetic sensor
* >16k° digital output
* ±0.25° accuracy
* Measurement update rate 100 kSPS
* 16 mT to 31 mT operating range
* Internal temperature sensor
* IC supply, 3.3 V
* SPI interface, 1.7 V to 5 V
* Junction t

Applications

* APPLICATION
* Rotation count detection and storage without power
* Contactless absolute position measurement
* Brushless DC motor control and positioning
