ADN4604 Datasheet, Switch, Analog Devices

ADN4604 Features

  • Switch DC to 4.25 Gbps per port NRZ data rate Programmable receive equalization 12 dB boost at 2 GHz Compensates 40 inches of FR4 at 4.25 Gbps Programmable transmit preemphasis/deemphasis Up t

PDF File Details

Part number:

ADN4604

Manufacturer:

Analog Devices ↗

File Size:

1.39MB

Download:

📄 Datasheet

Description:

Digital crosspoint switch. The ADN4604 is a 16 × 16 asynchronous, protocol agnostic, digital crosspoint switch, with 16 differential PECL-/CMLcompatible inputs

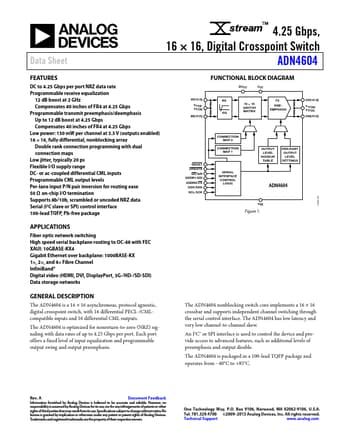

Datasheet Preview: ADN4604 📥 Download PDF (1.39MB)
Page 2 of ADN4604 Page 3 of ADN4604

ADN4604 Application

  • Applications Fiber optic network switching High speed serial backplane routing to OC-48 with FEC XAUI: 10GBASE-KX4 Gigabit Ethernet over backplane:
