ADN4624 Datasheet, Isolators, Analog Devices

✔ ADN4624 Features

FUNCTIONAL BLOCK DIAGRAMS
5.7 kV rms and 1.5 kV rms LVDS isolators
Complies with TIA/EIA-644-A LVDS signal levels
Quad-channel configuration (ADN4622: 2 + 2, ADN4

✔ ADN4624 Application

Isolated video and imaging data
Analog front-end isolation
Data plane isolation
Isolated high speed

PDF File Details

Analog Devices manufacturer logo

Part number:

ADN4624

Manufacturer:

Analog Devices ↗

File Size:

3.52MB

Download:

📄 Datasheet

Description:

Quad-channel lvds 2.5 gigabit isolators. The ADN4622/ADN46241 are quad-channel, signal isolated, lowvoltage differential signaling (LVDS) buffers that operate at up to 2.5 Gb

📥 Download PDF (3.52MB)

📁 Related Datasheet

ADN4622 - Quad-Channel LVDS 2.5 Gigabit Isolators (Analog Devices)

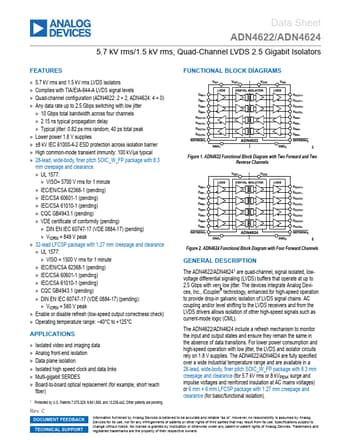

Data Sheet ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators FEATURES FUNCTIONAL BLOCK DIAGRAMS ► 5.7 kV rms and 1.5 k.

ADN4600 - Asynchronous Crosspoint Switch (Analog Devices)
.. 4.25 Gbps, 8 × 8, Asynchronous Crosspoint Switch ADN4600 FUNCTIONAL BLOCK DIAGRAM ADN4600 RECEIVE EQUALIZATION IP[7:0] EQ IN[7:0].

ADN4604 - Digital Crosspoint Switch (Analog Devices)
Data Sheet 4.25 Gbps, 16 × 16, Digital Crosspoint Switch ADN4604 07934-001 FEATURES DC to 4.25 Gbps per port NRZ data rate Programmable receive equ.

ADN4605 - 4.25 Gbps 40 x 40 Digital Crosspoint Switch (Analog Devices)
Data Sheet FEATURES DC to 4.25 Gbps per port NRZ data rate Adjustable receive equalization 3 dB, 6 dB, or 12 dB boost Compensates over 40 inches of FR.

ADN4612 - 12 x 12 Digital Crosspoint Switch (Analog Devices)
Data Sheet FEATURES DC to 11.3 Gbps per port, NRZ data rate Multitime constant, programmable receive equalization Compensates 25 inches of FR408 at 10.

ADN4650 - Dual-Channel LVDS Isolators (Analog Devices)
Data Sheet 5 kV RMS/3.75 kV RMS, 600 Mbps, Dual-Channel LVDS Isolators ADN4650/ADN4651/ADN4652 13677-001 13677-101 FEATURES 5 kV rms/3.75 kV rms L.

ADN4651 - Dual-Channel LVDS Isolators (Analog Devices)
Data Sheet 5 kV RMS/3.75 kV RMS, 600 Mbps, Dual-Channel LVDS Isolators ADN4650/ADN4651/ADN4652 13677-001 13677-101 FEATURES 5 kV rms/3.75 kV rms L.

ADN4652 - Dual-Channel LVDS Isolators (Analog Devices)
Data Sheet 5 kV RMS/3.75 kV RMS, 600 Mbps, Dual-Channel LVDS Isolators ADN4650/ADN4651/ADN4652 13677-001 13677-101 FEATURES 5 kV rms/3.75 kV rms L.

ADN4654 - Dual-Channel LVDS Gigabit Isolators (Analog Devices)
Data Sheet 5 kV RMS and 3.75 kV RMS, Dual-Channel LVDS Gigabit Isolators ADN4654/ADN4655/ADN4656 17011-001 FEATURES 5 kV rms and 3.75 kV rms LVDS i.

ADN4655 - Dual-Channel LVDS Gigabit Isolators (Analog Devices)
Data Sheet 5 kV RMS and 3.75 kV RMS, Dual-Channel LVDS Gigabit Isolators ADN4654/ADN4655/ADN4656 17011-001 FEATURES 5 kV rms and 3.75 kV rms LVDS i.
