ADP1147-3.3

Step-Down Switching Regulator Controllers

ADP1147-3.3 Features

* Greater Than 95% Efficiency Current Mode Switching Architecture Provides Superior Load and Line Transient Response Wide Input Voltage Range 3.5 V

* to 16 V User Defined Current Limit Short Circuit Protection Shutdown Pin Low Dropout Voltage Low Standby Current 160 ␮A typ Low Cost Available in 8-L

ADP1147-3.3 General Description

The ADP1147 is part of a family of High Efficiency Step-Down Switching Regulators. These regulators offer superior load and line transient response, a user defined current limit and an automatic power savings mode. The automatic power savings mode is used to maintain efficiency at lower output curre.

ADP1147-3.3 Datasheet (198.37 KB)

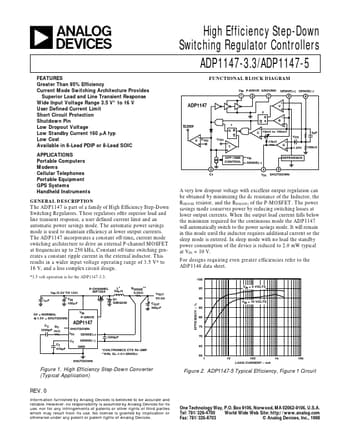

Preview of ADP1147-3.3 PDF

Datasheet Details

Part number:

ADP1147-3.3

Manufacturer:

Analog Devices ↗

File Size:

198.37 KB

Description:

Step-down switching regulator controllers.
