ADP198 High-Side Load Switch

The ADP198 is a high-side load switch designed for operation between 1.65 V and 6.5 V that is protected against reverse current flow from output to input. A load switch provides power domain isolation, thereby helping to keep subsystems isolated and powered independently and enabling reduced power c.

ADP198 Features

* Logic Controlled, 1 A, High-Side Load Switch with Reverse Current Blocking ADP198 TYPICAL APPLICATION CIRCUITS ADP198 VIN + GND LEVEL SHIFT AND SLEW RATE CONTROL LOAD REVERSE POLARITY PROTECTION VOUT Low RDSON of 50 mΩ @ 3.3 V (WLCSP only) Low input voltage range: 1.65 V to 6.5 V 1 A continuous op

ADP198 Datasheet (598.03 KB)

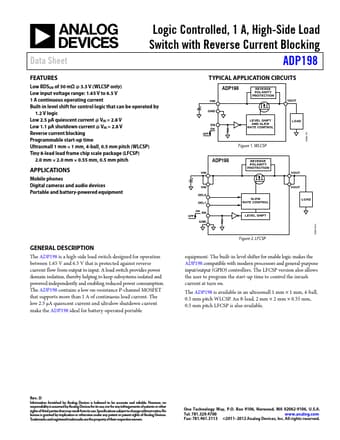

Preview of ADP198 PDF

Datasheet Details

Part number:

ADP198

Manufacturer:

Analog Devices ↗

File Size:

598.03 KB

Description:

High-side load switch.
