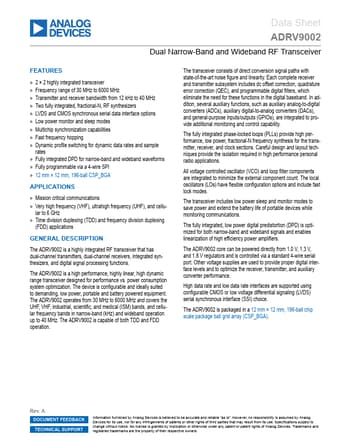

ADRV9002 Datasheet, transceiver equivalent, Analog Devices

ADRV9002 Features

• Transceiver
• 2 × 2 highly integrated transceiver
• Frequency range of 30 MHz to 6000 MHz
• Transmitter and receiver bandwidth from 12 kHz to 40 MHz
• Two fully inte

PDF File Details

Part number:

ADRV9002

Manufacturer:

Analog Devices ↗

File Size:

13.44MB

Download:

📄 Datasheet

Description:

Dual narrow/wideband rf transceiver. The ADRV9002 is a highly integrated RF transceiver that has dual-channel transmitters, dual-channel receivers, integrated synthesizer

ADRV9002 Application

• Applications
• Mission critical communications
• Very high frequency (VHF), ultrahigh frequency (UHF), and cellu- lar to 6 GHz
