ADRV9009 Datasheet, Transmitter, Analog Devices

ADRV9009 Features

  • Transmitter Dual transmitters Dual receivers Dual input shared observation receiver Maximum receiver bandwidth: 200 MHz Maximum tunable transmitter synthesis bandwidth: 450 MHz Maximum observation

PDF File Details

Part number:

ADRV9009

Manufacturer:

Analog Devices ↗

File Size:

3.43MB

Download:

📄 Datasheet

Description:

Integrated dual rf transmitter. The ADRV9009 is a highly integrated, radio frequency (RF), agile transceiver offering dual transmitters and receivers, integrated syn

Datasheet Preview: ADRV9009 📥 Download PDF (3.43MB)

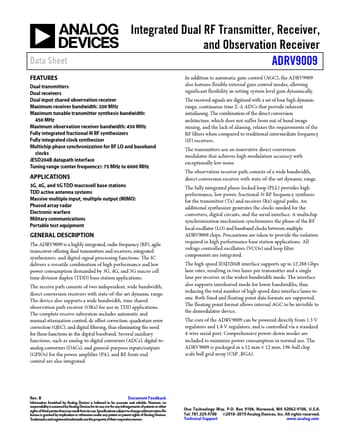

Page 2 of ADRV9009 Page 3 of ADRV9009

ADRV9009 Application

  • Applications 3G, 4G, and 5G TDD macrocell base stations TDD active antenna systems Massive multiple input, multiple output (MIMO) Phased array radar
