ADUC812 Datasheet, Adc, Analog Devices

ADUC812 Features

  • Adc Analog I/O 8-Channel, High Accuracy 12-Bit ADC On-Chip, 100 ppm/؇C Voltage Reference High Speed 200 kSPS DMA Controller for High Speed ADC-to-RAM Capture 2 12-Bit Voltage Output DACs On

PDF File Details

Part number:

ADUC812

Manufacturer:

Analog Devices ↗

File Size:

1.23MB

Download:

📄 Datasheet

Description:

Multichannel 12-bit adc. The ADuC812 is a fully integrated 12-bit data acquisition system incorporating a high performance self-calibrating multichannel ADC,

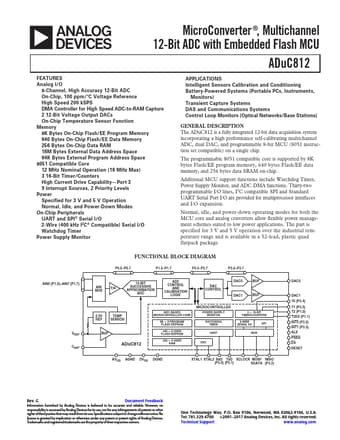

Datasheet Preview: ADUC812 📥 Download PDF (1.23MB)
Page 2 of ADUC812 Page 3 of ADUC812

ADUC812 Application

  • Applications Intelligent Sensors Calibration and Conditioning Battery-Powered Systems (Portable PCs, Instruments, Monitors) Transient Capture System
