ADUC816 - Dual-Channel 16-Bit ADCs

Datasheet Summary

Description

The ADuC816 is a complete smart transducer front-end, integrating two high-resolution sigma-delta ADCs, an 8-bit MCU, and program/data Flash/EE Memory on a single chip.

This low power device accepts low-level signals directly from a transducer.

Features

  • High-Resolution Sigma-Delta ADCs Dual 16-Bit Independent ADCs Programmable Gain Front End 16-Bit No Missing Codes, Primary ADC 13-Bit p-p Resolution @ 20 Hz, 20 mV Range 16-Bit p-p Resolution @ 20 Hz, 2.56 V Range Memory 8 Kbytes On-Chip Flash/EE Program Memory 640 Bytes On-Chip Flash/EE Data Memory Flash/EE, 100 Year Retention, 100 Kcycles Endurance 256 Bytes On-Chip Data RAM 8051-Based Core 8051-Compatible Instruction Set (12.58 MHz Max) 32 kHz External Crystal, On-Chip Programmable PLL Three.

📥 Download Datasheet

Datasheet preview – ADUC816

Datasheet Details

Part number ADUC816
Manufacturer Analog Devices
File Size 0.99 MB
Description Dual-Channel 16-Bit ADCs
Datasheet download datasheet ADUC816 Datasheet
Additional preview pages of the ADUC816 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADUC812 - Multichannel 12-Bit ADC
  • ADUC814 - Small Package 12-Bit ADC
  • ADUC824 - Dual-Channel 16-/24-Bit ADCs
  • ADuC831 - 12-Bit ADCs/DACs
  • ADuC832 - MicroConverter 12-Bit ADCs and DACs
  • ADuC834 - Dual 16-Bit/24-Bit ADCs
  • ADUC836 - Dual 16-Bit Sigma-Delta ADCs
  • ADuC841 - MicroConverter 12-Bit ADCs/DACs

Full PDF Text Transcription

Click to expand full text

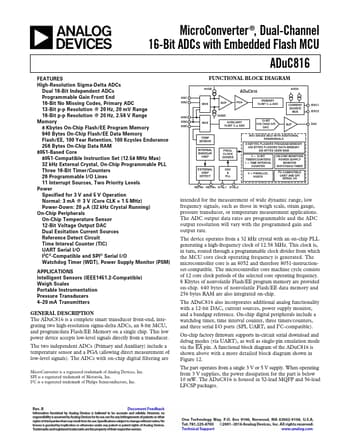

a MicroConverter®, Dual-Channel 16-Bit ADCs with Embedded Flash MCU ADuC816 FEATURES High-Resolution Sigma-Delta ADCs Dual 16-Bit Independent ADCs Programmable Gain Front End 16-Bit No Missing Codes, Primary ADC 13-Bit p-p Resolution @ 20 Hz, 20 mV Range 16-Bit p-p Resolution @ 20 Hz, 2.56 V Range Memory 8 Kbytes On-Chip Flash/EE Program Memory 640 Bytes On-Chip Flash/EE Data Memory Flash/EE, 100 Year Retention, 100 Kcycles Endurance 256 Bytes On-Chip Data RAM 8051-Based Core 8051-Compatible Instruction Set (12.58 MHz Max) 32 kHz External Crystal, On-Chip Programmable PLL Three 16-Bit Timer/Counters 26 Programmable I/O Lines 11 Interrupt Sources, Two Priority Levels Power Specified for 3 V and 5 V Operation Normal: 3 mA @ 3 V (Core CLK = 1.
