Part number: ADUM3160
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 396.72KB
Download: 📄 Datasheet

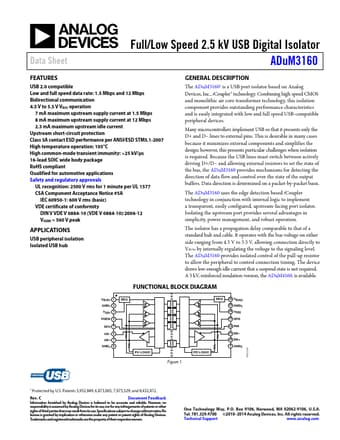

Description: Full/Low Speed 2.5 kV USB Digital Isolator
USB 2.0 compatible Low and full speed data rate: 1.5 Mbps and 12 Mbps Bidirectional communication 4.5 V to 5.5 V VBUS operation
7 mA maximum upstream supply current at 1..
Safety and regulatory approvals UL recognition: 2500 V rms for 1 minute per UL 1577 CSA Component Acceptance Notice #5A
.
The ADuM31601 is a USB port isolator based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics and is easil.
