Part number: ADuM3166
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 1.36MB
Download: 📄 Datasheet

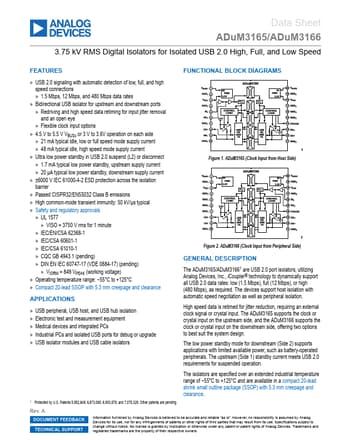

Description: 3.75kV RMS Digital Isolators
FUNCTIONAL BLOCK DIAGRAMS
* USB 2.0 signaling with automatic detection of low, full, and high speed connections
* 1.5 Mbps, 12 Mbps, and 480 Mbps data rates
* USB peripheral, USB host, and USB hub isolation
* Electronic test and measurement equipment
* Medical devi.
The ADuM3165/ADuM31661 are USB 2.0 port isolators, utilizing Analog Devices, Inc., iCoupler® technology to dynamically support all USB 2.0 data rates: low (1.5 Mbps), full (12 Mbps), or high (480 Mbps), as required. The devices support host isolation.
