ADV7202 Datasheet - Analog Devices

ADV7202 - Simultaneous Sampling Video Rate Codec

The ADV7202 is a video rate sampling codec.

It has the capability of sampling up to five NTSC/PAL/SECAM video I/P signals.

The resolution on the front end digitizer is 12 bits; 2 bits (12 dB) are used for gain and offset adjustment.

The digitizer has a conversion rate of up to 54 MHz.

The ADV7202 ca

ADV7202 Features

* Four 10-Bit Video DACs (4:2:2, YCrCb, RGB I/P Supported) 10-Bit Video Rate Digitization at up to 54 MHz AGC Control (؎6 dB) Front End 3-Channel Clamp Control Up to Five CVBS Input Channels, Two Component YUV, Three S-Video, or a Combination of the Above. Simultaneous Digitization of Two CVBS Input C

ADV7202_AnalogDevices.pdf

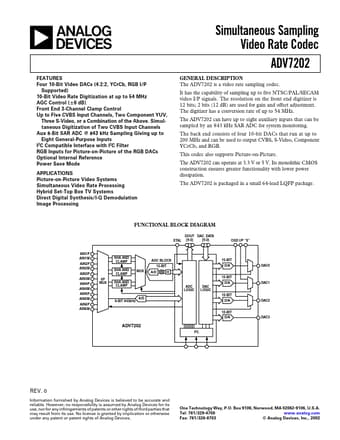

Preview of ADV7202 PDF
ADV7202 Datasheet Preview Page 2 ADV7202 Datasheet Preview Page 3

Datasheet Details

Part number:

ADV7202

Manufacturer:

Analog Devices ↗

File Size:

1.90 MB

Description:

Simultaneous sampling video rate codec.
