ADV7321 - (ADV7320 / ADV7321) Multiformat 216 MHz Video Encoder

This page provides the datasheet information for the ADV7321, a member of the ADV7320 (ADV7320 / ADV7321) Multiformat 216 MHz Video Encoder family.

Datasheet Summary

Description

The ADV®7320/ADV7321 are high speed, digital-to-analog encoders on single monolithic chips.

They include six high speed NSV video DACs with TTL-compatible inputs.

Features

  • High definition (HD) input formats 16-/20-, 24-/30-bit (4:2:2, 4:4:4) parallel YCrCb Fully compliant with SMPTE 274M (1080i, 1080p @ 74.25 MHz) SMPTE 296M (720p) SMPTE 240M (1035i) RGB in 3-bit × 10-bit 4:4:4 input format HDTV RGB supported RGB, RGBHV Other HD formats using async timing mode Enhanced definition (ED) input formats 8-/10-, 16-/20-, 24-/30-bit (4:2:2, 4:4:4) parallel YCrCb SMPTE 293M (525p) BTA T-1004 EDTV2 (525p) ITU-R BT.1358 (625p/525p) ITU-R BT.1362 (625p/525p) RGB in 3-bit × 1.

📥 Download Datasheet

Datasheet preview – ADV7321

Datasheet Details

Part number ADV7321
Manufacturer Analog Devices
File Size 0.96 MB
Description (ADV7320 / ADV7321) Multiformat 216 MHz Video Encoder
Datasheet download datasheet ADV7321 Datasheet
Additional preview pages of the ADV7321 datasheet.

📁 Similar Datasheet

  • ADV7525 - Low Power HDMI/DVI Transmitter (Analog Integrations Corporation)
  • ADV-700 - DVD Surround Receiver (Denon)
  • ADV809 - 3-pin microprocessor resets (ADV)
  • ADV810 - 3-pin microprocessor resets (ADV)
  • Advantest-R3264 - Spectrum Analyzers Operation Manual (Advantest)
  • Advantest-R3267 - Spectrum Analyzers Operation Manual (Advantest)
  • Advantest-R3271 - Spectrum Analyzers (Advantest)
  • Advantest-R3273 - Spectrum Analyzers Operation Manual (Advantest)
Other Datasheets by Analog Devices
  • ADV7320 - (ADV7320 / ADV7321) Multiformat 216 MHz Video Encoder
  • ADV7322 - Multiformat 11-Bit HDTV Video Encoder
  • ADV7324 - Multiformat 216 MHz Video Encoder
  • ADV7300A - Multiformat SD/ Progressive Scan/HDTV Video Encoder with Six NSV 12-Bit DACs
  • ADV7301A - Multiformat SD/ Progressive Scan/HDTV Video Encoder
  • ADV7310 - Video Encoder
  • ADV7311 - Video Encoder
  • ADV7312 - Multiformat 11-Bit HDTV Video Encoder

Full PDF Text Transcription

Click to expand full text

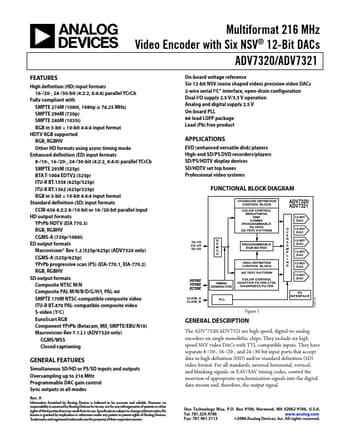

Multiformat 216 MHz Video Encoder with Six NSV® 12-Bit DACs ADV7320/ADV7321 FEATURES High definition (HD) input formats 16-/20-, 24-/30-bit (4:2:2, 4:4:4) parallel YCrCb Fully compliant with SMPTE 274M (1080i, 1080p @ 74.25 MHz) SMPTE 296M (720p) SMPTE 240M (1035i) RGB in 3-bit × 10-bit 4:4:4 input format HDTV RGB supported RGB, RGBHV Other HD formats using async timing mode Enhanced definition (ED) input formats 8-/10-, 16-/20-, 24-/30-bit (4:2:2, 4:4:4) parallel YCrCb SMPTE 293M (525p) BTA T-1004 EDTV2 (525p) ITU-R BT.1358 (625p/525p) ITU-R BT.1362 (625p/525p) RGB in 3-bit × 10-bit 4:4:4 input format Standard definition (SD) input formats CCIR-656 4:2:2 8-/10-bit or 16-/20-bit parallel input HD output formats YPrPb HDTV (EIA 770.
Published: |
