ADuC831 - 12-Bit ADCs/DACs

This page provides the datasheet information for the ADuC831, a member of the ADUC831 12-Bit ADCs/DACs family.

Datasheet Summary

Description

The ADuC831 is a fully integrated 247 kSPS data acquisition system incorporating a high performance self-calibrating multichannel 12-bit ADC, dual 12-bit DACs, and programmable 8-bit MCU on a single chip.

Features

  • ANALOG I/O 8-Channel, 247 kSPS 12-Bit ADC DC Performance: ؎1 LSB INL AC Performance: 71 dB SNR DMA Controller for High Speed ADC-to-RAM Capture 2 12-Bit (Monotonic) Voltage Output DACs Dual Output PWM/⌺-⌬ DACs On-Chip Temperature Sensor Function ؎3؇C On-Chip Voltage Reference Memory 62 kBytes On-Chip Flash/EE Program Memory 4 kBytes On-Chip Flash/EE Data Memory Flash/EE, 100 Yr Retention, 100 kCycles Endurance 2304 Bytes On-Chip Data RAM 8051 Based Core 8051 Compatible Instruction Set (16 MHz Ma.

📥 Download Datasheet

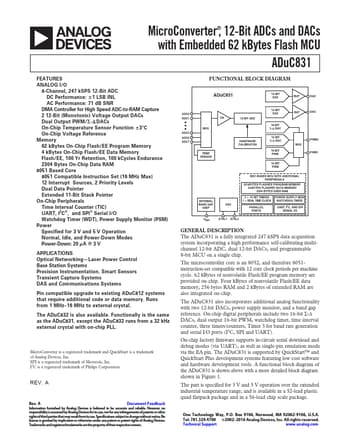

Datasheet preview – ADuC831

Datasheet Details

Part number ADuC831
Manufacturer Analog Devices
File Size 807.88 KB
Description 12-Bit ADCs/DACs
Datasheet download datasheet ADuC831 Datasheet
Additional preview pages of the ADuC831 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADuC832 - MicroConverter 12-Bit ADCs and DACs
  • ADuC834 - Dual 16-Bit/24-Bit ADCs
  • ADUC836 - Dual 16-Bit Sigma-Delta ADCs
  • ADUC812 - Multichannel 12-Bit ADC
  • ADUC814 - Small Package 12-Bit ADC
  • ADUC816 - Dual-Channel 16-Bit ADCs
  • ADUC824 - Dual-Channel 16-/24-Bit ADCs
  • ADuC841 - MicroConverter 12-Bit ADCs/DACs

Full PDF Text Transcription

Click to expand full text
MicroConverter®, 12-Bit ADCs and DACs with Embedded 62 kBytes Flash MCU ADuC831 FEATURES ANALOG I/O 8-Channel, 247 kSPS 12-Bit ADC DC Performance: ؎1 LSB INL AC Performance: 71 dB SNR DMA Controller for High Speed ADC-to-RAM Capture 2 12-Bit (Monotonic) Voltage Output DACs Dual Output PWM/⌺-⌬ DACs On-Chip Temperature Sensor Function ؎3؇C On-Chip Voltage Reference Memory 62 kBytes On-Chip Flash/EE Program Memory 4 kBytes On-Chip Flash/EE Data Memory Flash/EE, 100 Yr Retention, 100 kCycles Endurance 2304 Bytes On-Chip Data RAM 8051 Based Core 8051 Compatible Instruction Set (16 MHz Max) 12 Interrupt Sources, 2 Priority Levels Dual Data Pointer Extended 11-Bit Stack Pointer On-Chip Peripherals Time Interval Counter (TIC) UART, I2C®, and SPI® Serial I/O Watchdog Timer (WDT), Power Supply Moni
