ADuM4122 Datasheet, Driver, Analog Devices

ADuM4122 Features

  • Driver 2 A output current per output pin (<3 Ω RDSON_X) 3 A peak short-circuit current 3.3 V to 6.5 V, VDD1 4.5 V to 35 V, VDD2 Positive going threshold, UVLO at 3.3 V VDD1 Multiple positive g

PDF File Details

Part number:

ADuM4122

Manufacturer:

Analog Devices ↗

File Size:

617.68kb

Download:

📄 Datasheet

Description:

Isolated gate driver.

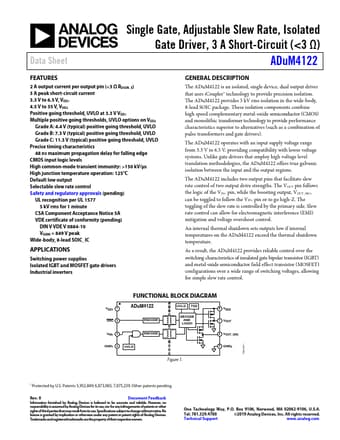

Datasheet Preview: ADuM4122 📥 Download PDF (617.68kb)
Page 2 of ADuM4122 Page 3 of ADuM4122

ADuM4122 Application

  • Applications Swi
