ADuM4137 Datasheet, Driver, Analog Devices

ADuM4137 Features

  • Driver 6 A peak drive output capability Internal turn off NFET, on resistance: <0.95 Ω Internal turn on PFET, on resistance: <1.18 Ω Split emitter overcurrent detection Miller clamp output wit

PDF File Details

Part number:

ADuM4137

Manufacturer:

Analog Devices ↗

File Size:

616.18kb

Download:

📄 Datasheet

Description:

Isolated igbt gate driver. The ADuM41371 is a single-channel gate driver specifically optimized for driving insulated gate bipolar transistors (IGBTs). Analog D

Datasheet Preview: ADuM4137 📥 Download PDF (616.18kb)

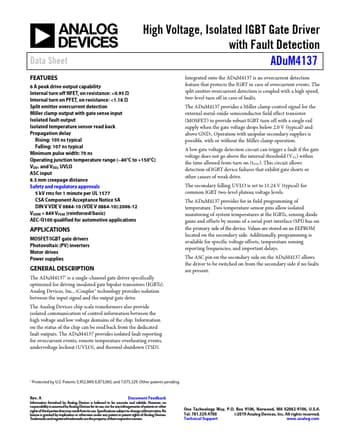

Page 2 of ADuM4137 Page 3 of ADuM4137

ADuM4137 Application

  • Applications APPLICATIONS MOSFET/IGBT gate drivers Photovoltaic (PV) inverters Motor drives Power supplies GENERAL DESCRIPTION The ADuM41371 is a si
