HMC241ALP3E

GaAs Nonreflective SP4T Switch

HMC241ALP3E Features

* Broadband frequency range: 100 MHz to 4 GHz Nonreflective 50 Ω design Low insertion loss: 0.7 dB at 2 GHz High isolation: 43 dB at 2 GHz High input linearity at 250 MHz to 4 GHz 1 dB compression (P1dB): 29 dBm typical Third order intercept (IP3): 47 dBm typical High power handling 28.5 dBm through p

HMC241ALP3E General Description

The HMC241ALP3E is a general-purpose, nonreflective, 100 MHz to 4 GHz single-pole, four-throw (SP4T) switch manufactured using a gallium arsenide (GaAs) process. This switch offers high isolation of 43 dB typical at 2 GHz, low insertion loss of 0.7 dB at 2 GHz, and on-chip termination of the isolate.

HMC241ALP3E Datasheet (216.62 KB)

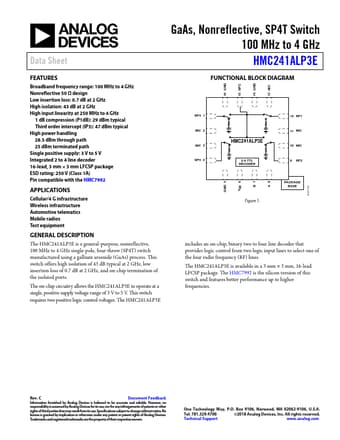

Preview of HMC241ALP3E PDF

Datasheet Details

Part number:

HMC241ALP3E

Manufacturer:

Analog Devices ↗

File Size:

216.62 KB

Description:

Gaas nonreflective sp4t switch.
