HMC661LC4B - ULTRA-WIDEBAND 4 GS/s TRACK-AND-HOLD AMPLIFIER

The HMC661LC4B is a SiGe monolithic, fully differential, single rank, track-and-hold (T/H) that provides unprecedented bandwidth and dynamic-range performance to wideband sampled signal systems. The T/H offers precision signal sampling over 18 GHz bandwidth, with 9 - 10-bit linearity from DC to beyo.

HMC661LC4B Features

* 18 GHz Input bandwidth (1 Vp-p Full Scale) 4 GS/s Maximum Sampling Rate 68 dB SFDR (4 GHz / 0.5 Vp-p Input, CLK = 1 GS/s) 57 dB SFDR (4 GHz / 1 Vp-p Input, CLK = 1 GS/s) Direct-Coupled I/O Ultra-Clean Output Waveforms, Minimal Glitching >60 dB Hold Mode Feedthrough Rejection 1.05 mV RMS Hold Mode Ou

HMC661LC4B-AnalogDevices.pdf

Preview of HMC661LC4B PDF

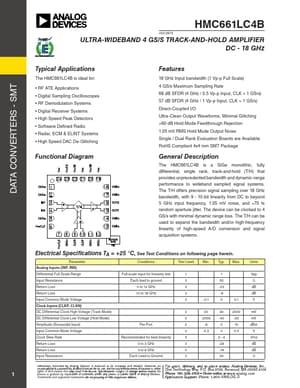

HMC661LC4B Datasheet Preview Page 2 HMC661LC4B Datasheet Preview Page 3

Datasheet Details

Part number:

HMC661LC4B

Manufacturer:

Analog Devices ↗

File Size:

870.14 KB

Description:

Ultra-wideband 4 gs/s track-and-hold amplifier.
