HMC6042 - 2-Axis Magnetic Sensor

2-Axis Magnetic Sensor Circuit HMC6042 The Honeywell HMC6042 is a surface mount multi-chip module designed for low field magnetic sensing such as low cost compassing and magnetometry.

The HMC6042 includes our state of the art 1042 series magneto-resistive sensors plus a precision mixed signal ASIC containing three sensor amplifiers and a compatible set/reset strap driver circuit for 2.4 to 3.6 volt operation.

The ASIC plus sensors are surface mount packaged in www.DataSheet4U.com Advanced Infor

HMC6042 Features

* 4 4 4 4 4 4 4 4 4 2-Axis Magnetoresistive Sensor and ASIC in a Single Package Low Cost 5 x 3.6 x 1.0mm LCC Surface Mount Package Low Voltage Operations (2.4 to 3.6V) Built-In Set/Reset Drive Circuit Signal Processing Flexibility Lead Free Package Construction Wide Magnetic Field Range (+/-6 Oe) Avai

HMC6042_Honeywell.pdf

Preview of HMC6042 PDF

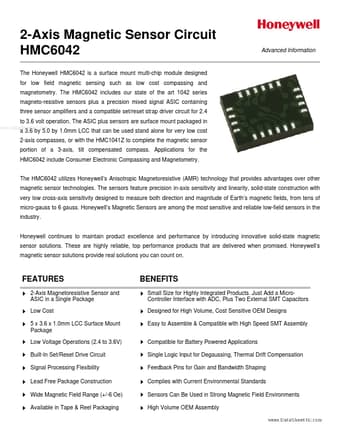

HMC6042 Datasheet Preview Page 2 HMC6042 Datasheet Preview Page 3

Datasheet Details

Part number:

HMC6042

Manufacturer:

Honeywell

File Size:

192.73 KB

Description:

2-axis magnetic sensor.
