HMC1023

3-AXIS MAGNETIC SENSOR

HMC1023 Features

* x x x x x x Ball Grid Array (BGA) Surface-Mount Package Three Orthogonal Magneto-Resistive Sensors Wide Field Range of ± 6 Gauss 1.0 mV/V/gauss Sensitivity Minimum Detectable Field to 85Pgauss Patented On-Chip Set/Reset and Offset Straps Product Description The Honeywell HMC1023 is a high per

HMC1023 General Description

The Honeywell HMC1023 is a high performance threeaxis magneto-resistive sensor design in a single package. The advantages of the HMC1023 include orthogonal three-axis sensing, small size and a 16contact BGA surface mount package. Each of the magneto-resistive sensors are configured as 4-element Whea.

HMC1023 Datasheet (602.86 KB)

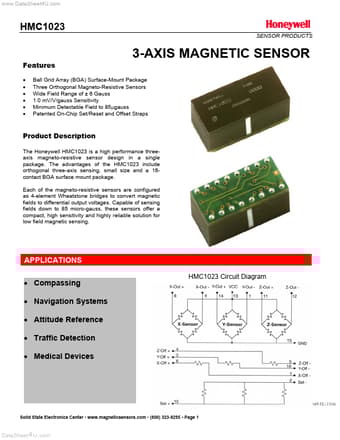

Preview of HMC1023 PDF

Datasheet Details

Part number:

HMC1023

Manufacturer:

Honeywell

File Size:

602.86 KB

Description:

3-axis magnetic sensor.
