HMC1022

GaAs pHEMT MMIC 0.25 WATT POWER AMPLIFIER

HMC1022 Features

* High P1dB Output Power: 22 dBm High Psat Output Power: 24 dBm High Gain: 12 dB High Output IP3: 32 dBm Supply Voltage: +10 V @ 150 mA 50 Ohm Matched Input/Output Die Size: 2.82 x 1.50 x 0.1 mm General Description The HMC1022 is a GaAs pHEMT MMIC Distributed Power Amplifier which operates between DC

HMC1022 General Description

The HMC1022 is a GaAs pHEMT MMIC Distributed Power Amplifier which operates between DC and 48 GHz. The amplifier provides 12 dB of gain, 32 dBm output IP3 and +22 dBm of output power at 1 dB gain compression while requiring 150 mA from a +10 V supply. The HMC1022 exhibits a slightly positive gain sl.

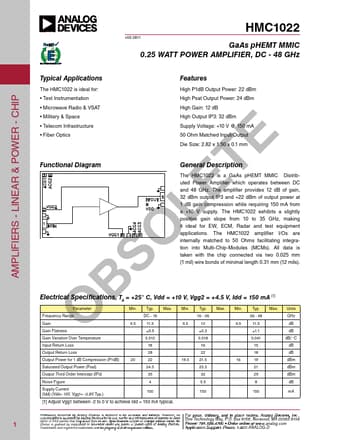

HMC1022 Datasheet (946.43 KB)

Preview of HMC1022 PDF

Datasheet Details

Part number:

HMC1022

Manufacturer:

Analog Devices ↗

File Size:

946.43 KB

Description:

Gaas phemt mmic 0.25 watt power amplifier.
Amplifiers - Linear & Power - Chip OBSOLETE Typical Applications The HMC1022 is ideal for:

* Test Instrumentation

* Microwave Radio &.
