HMC1013LP4E - SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER

Datasheet Summary

Description

The HMC1013LP4E is a Successive Detection Log Video Amplifier which operates from 0.5 to 18.5 GHz.

The HMC1013LP4E provides a logging range of 67 dB.

This device offers typical fast rise/fall times of 5/15 ns and a superior delay time of only 10 ns.

Features

  • High Logging Range: 67 dB (-62 to +5 dBm) Output Frequency Flatness: ±2 dB Log Linearity: ±2 dB Fast Rise/Fall Times: 5/15 ns Single Positive Supply: +3.3V ESD Sensitivity (HBM): Class 1A 24 Lead 4x4mm SMT Package: 16mm2 General.

📥 Download Datasheet

Datasheet preview – HMC1013LP4E

Datasheet Details

Part number HMC1013LP4E
Manufacturer Analog Devices
File Size 704.66 KB
Description SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER
Datasheet download datasheet HMC1013LP4E Datasheet
Additional preview pages of the HMC1013LP4E datasheet.

📁 Similar Datasheet

  • HMC1001 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1002 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1020LP4E - RMS POWER DETECTOR (Hittite)
  • HMC1021 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1021LP4E - RMS POWER DETECTOR & ENVELOPE TRACKER (Hittite)
  • HMC1022 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1023 - 3-AXIS MAGNETIC SENSOR (Honeywell)
  • HMC1031MS8E - CLOCK GENERATOR (Hittite)
  • HMC1041Z - 1-Axis Magnetic Sensor (Honeywell)
  • HMC1042L - 2-Axis Magnetic Sensor (Honeywell)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text

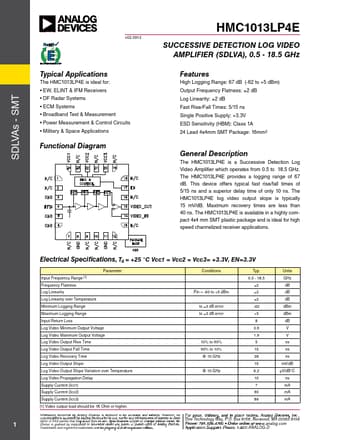

SDLVAs - SMT v02.0913 Typical Applications The HMC1013LP4E is ideal for: • EW, ELINT & IFM Receivers • DF Radar Systems • ECM Systems • Broadband Test & Measurement • Power Measurement & Control Circuits • Military & Space Applications Functional Diagram HMC1013LP4E SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA), 0.5 - 18.5 GHz Features High Logging Range: 67 dB (-62 to +5 dBm) Output Frequency Flatness: ±2 dB Log Linearity: ±2 dB Fast Rise/Fall Times: 5/15 ns Single Positive Supply: +3.3V ESD Sensitivity (HBM): Class 1A 24 Lead 4x4mm SMT Package: 16mm2 General Description The HMC1013LP4E is a Successive Detection Log Video Amplifier which operates from 0.5 to 18.5 GHz. The HMC1013LP4E provides a logging range of 67 dB.
