HMC1016

GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER

HMC1016 Features

* P1dB Output Power: +24 dBm Psat Output Power: +26 dBm High Gain: 22 dB Output IP3: +34 dBm Supply Voltage: Vdd = +6V @ 250 mA 50 Ohm Matched Input/Output Die Size: 0.90 x 2.22 x 0.1 mm General Description The HMC1016 is a four stage GaAs PHEMT MMIC Medium Power Amplifier die which operates between 3

HMC1016 General Description

The HMC1016 is a four stage GaAs PHEMT MMIC Medium Power Amplifier die which operates between 34 and 46.5 GHz. The amplifier provides 22 dB of gain, +26 dBm of saturated output power, and 17% PAE from a +6V supply. With up to +37 dBm IP3 the HMC1016 is ideal for high linearity applications in miltar.

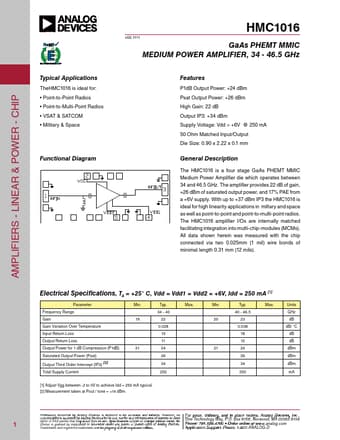

HMC1016 Datasheet (542.24 KB)

Preview of HMC1016 PDF

Datasheet Details

Part number:

HMC1016

Manufacturer:

Analog Devices ↗

File Size:

542.24 KB

Description:

Gaas phemt mmic medium power amplifier.
Amplifiers - Linear & Power - Chip Typical Applications TheHMC1016 is ideal for:

* Point-to-Point Radios

* Point-to-Multi-Point Radio.
