HMC1010LP4E - RMS POWER DETECTOR

Datasheet Summary

Description

The HMC1010LP4E Power Detector is designed for RF power measurement, and control applications for frequencies up to 3.9 GHz.

The detector provides an accurate RMS representation of any RF/IF input signal.

Features

  • ±1 dB Detection Accuracy to 3.9 GHz Input Dynamic Range: -50 dBm to +10 dBm RF Signal Wave shape & Crest Factor Independent Digitally Programmable Integration Bandwidth +5V Operation from -40°C to +85°C Excellent Temperature Stability Power-Down Mode 24 Lead 4x4mm SMT Package: 16mm² General.

📥 Download Datasheet

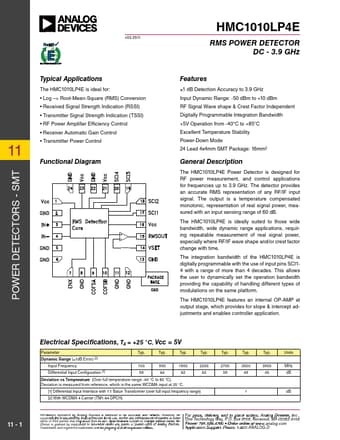

Datasheet preview – HMC1010LP4E

Datasheet Details

Part number HMC1010LP4E
Manufacturer Analog Devices
File Size 2.70 MB
Description RMS POWER DETECTOR
Datasheet download datasheet HMC1010LP4E Datasheet
Additional preview pages of the HMC1010LP4E datasheet.

📁 Similar Datasheet

  • HMC1001 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1002 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1020LP4E - RMS POWER DETECTOR (Hittite)
  • HMC1021 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1021LP4E - RMS POWER DETECTOR & ENVELOPE TRACKER (Hittite)
  • HMC1022 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1023 - 3-AXIS MAGNETIC SENSOR (Honeywell)
  • HMC1031MS8E - CLOCK GENERATOR (Hittite)
  • HMC1041Z - 1-Axis Magnetic Sensor (Honeywell)
  • HMC1042L - 2-Axis Magnetic Sensor (Honeywell)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Power Detectors - SMT v03.0511 11 Typical Applications The HMC1010LP4E is ideal for: • Log –> Root-Mean-Square (RMS) Conversion • Received Signal Strength Indication (RSSI) • Transmitter Signal Strength Indication (TSSI) • RF Power Amplifier Efficiency Control • Receiver Automatic Gain Control • Transmitter Power Control Functional Diagram HMC1010LP4E RMS POWER DETECTOR DC - 3.9 GHz Features ±1 dB Detection Accuracy to 3.
