GaAs pHEMT MMIC 0.25 WATT POWER AMPLIFIER

HMC1022A General Description

The HMC1022A is a GaAs pHEMT MMIC Distributed Power Amplifier which operates between DC and 48 GHz. The amplifier provides 12 dB of gain, 32 dBm output IP3 and +22 dBm of output power at 1 dB gain compression while requiring 150 mA from a +10 V supply. The HMC1022A exhibits a slightly positive gain .

HMC1022A Datasheet (560.35 KB)

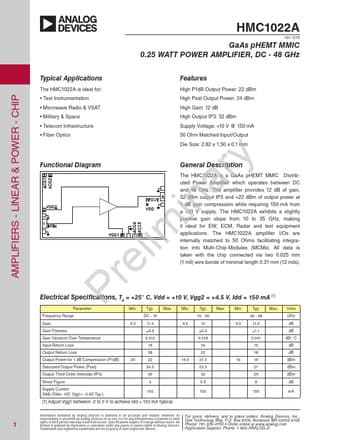

HMC1022A Datasheet Preview — Preview of HMC1022A PDF

Datasheet Details

Part number:

HMC1022A

Manufacturer:

Analog Devices ↗

File Size:

560.35 KB

Description:

Gaas phemt mmic 0.25 watt power amplifier.
Amplifiers - Linear & Power - Chip Preliminary Typical Applications The HMC1022A is ideal for: Test Instrumentation Microwave Rad.
