HMC1052L - 2-AXIS MAGNETIC SENSOR

Honeywell

📥 Download Datasheet

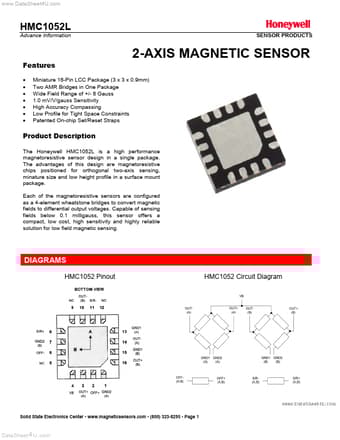

HMC1052L Datasheet Preview — Preview of HMC1052L PDF

Datasheet Details

Part number	HMC1052L
Manufacturer	Honeywell
File Size	266.96 KB
Description	2-AXIS MAGNETIC SENSOR
Datasheet	HMC1052L_Honeywell.pdf

HMC1052L Product details

Description

The Honeywell HMC1052L is a high performance magnetoresistive sensor design in a single package.

Features

Miniature 16-Pin LCC Package (3 x 3 x 0.9mm) Two AMR Bridges in One Package Wide Field Range of +/- 6 Gauss 1.0 mV/V/gauss Sensitivity High Accuracy Compassing Low Profile for Tight Space Constraints Patented On-chip Set/Reset Straps Product.
