HMC1057 Datasheet, Mixer, Analog Devices

HMC1057 Features

  • Mixer Passive: No DC Bias Required High Input IP3: 13 dBm [2] High LO/RF Isolation: 30 dB High 2LO/RF Isolation: 50 dB Wide IF Bandwidth: DC - 12 GHz Upconversion & Downconversion Application

PDF File Details

Part number:

HMC1057

Manufacturer:

Analog Devices ↗

File Size:

1.09MB

Download:

📄 Datasheet

Description:

Gaas mmic sub harmonic i/q mixer. The HMC1057 is a sub-harmonically pumped MMIC Mixer which can be used as either an Image reject mixer (IRM) or a single sideband upco

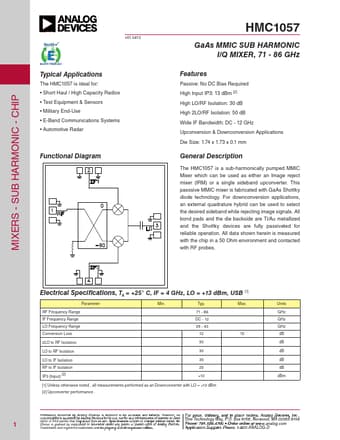

Datasheet Preview: HMC1057 📥 Download PDF (1.09MB)
Page 2 of HMC1057 Page 3 of HMC1057

HMC1057 Application

  • Applications The HMC1057 is ideal for:
  • Short Haul / High Capacity Radios
  • Test Equipment & Sensors
  • Military End-Use
