HMC1055 Datasheet, Switch, Analog Devices

HMC1055 Features

  • Switch Low insertion loss: 0.7 dB typical at 2.0 GHz High input third-order intercept (IP3): >60 dBm typical Single positive control: 0 V or 3 V Small, surface-mount, 8-lead, 2 mm × 2 mm LFCSP

PDF File Details

Part number:

HMC1055

Manufacturer:

Analog Devices ↗

File Size:

281.81kb

Download:

📄 Datasheet

Description:

Spst switch. The HMC1055 is a low cost, gallium arsenide (GaAs), singlepole, single-throw (SPST) switch in a surface-mount LFCSP package. This swi

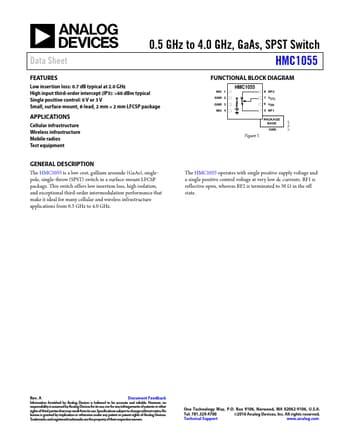

Datasheet Preview: HMC1055 📥 Download PDF (281.81kb)
Page 2 of HMC1055 Page 3 of HMC1055

HMC1055 Application

  • Applications Cellular infrastructure Wireless infrastructure Mobile radios Test equipment FUNCTIONAL BLOCK DIAGRAM NIC 1 GND 2 GND 3 NIC 4 HMC105
