HMC1058

GaAs MMIC SUB HARMONIC MIXER

HMC1058 Features

* Passive: No DC Bias Required Low LO Power: 9 dBm High LO/RF Isolation: 28 dB High 2LO/RF Isolation: 43 dB Wide IF Bandwidth: DC to 12 GHz Upconversion & Downconversion Applications Die Size: 1.15 x 0.97 x 0.1 mm General Description The HMC1058 is a sub-harmonically pumped MMIC mixer. It can be used

HMC1058 General Description

The HMC1058 is a sub-harmonically pumped MMIC mixer. It can be used as an upconverter or a downconverter, with DC to 12 GHz at the IF port and 71 to 86 GHz at the RF port. This passsive MMIC mixer is fabricated with GaAs Shottky diode technology. All bond pads and the die backside are Ti/Au metalliz.

HMC1058 Datasheet (937.70 KB)

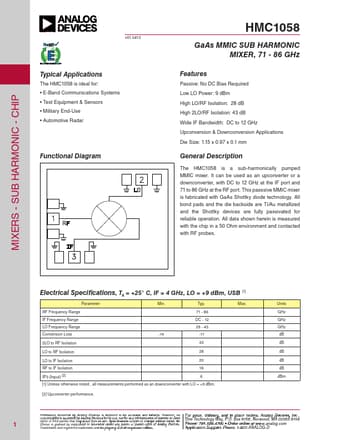

Preview of HMC1058 PDF

Datasheet Details

Part number:

HMC1058

Manufacturer:

Analog Devices ↗

File Size:

937.70 KB

Description:

Gaas mmic sub harmonic mixer.
MIXERS - SUB HARMONIC - CHIP v01.0413 Typical Applications The HMC1058 is ideal for:

* E-Band Communications Systems

* Test Equipment.
