HMC1052

(HMC1051 / HMC1052) 1 AND 2-AXIS MAGNETIC SENSORS

Honeywell

HMC1052 Features

* Small 8-Pin SIP or 10-Pin MSOP Packages Two AMR Bridges in One Package Wide Field Range of +/- 6 Gauss 1.0 mV/V/gauss Sensitivity High Accuracy Compassing (Error

HMC1052 General Description

The Honeywell HMC1051Z and HMC1052 are high performance magnetoresistive sensor designs on a single chip. The advantages of these patented chips include perfectly orthogonal two-axis sensing (HMC1052), ultra small size and low power capability in miniature surface mount packages. Each of the magneto.

HMC1052 Datasheet (465.63 KB)

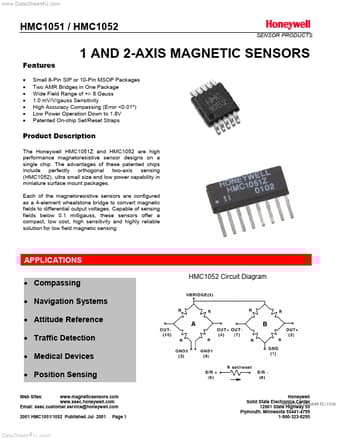

HMC1052 Datasheet Preview — Preview of HMC1052 PDF

Datasheet Details

Part number:

HMC1052

Manufacturer:

Honeywell

File Size:

465.63 KB

Description:

(hmc1051 / hmc1052) 1 and 2-axis magnetic sensors.
