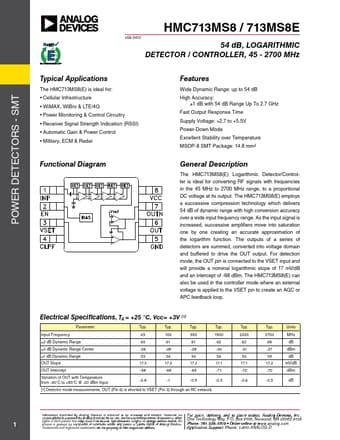

HMC713MS8 Datasheet, Detector/controller, Analog Devices

HMC713MS8 Features

• Detector/controller Wide Dynamic Range: up to 54 dB High Accuracy: ±1 dB with 54 dB Range Up To 2.7 GHz Fast Output Response Time Supply Voltage: +2.7 to +5.5V Power-Down Mode Excellent Stability over Temp

PDF File Details

Part number:

HMC713MS8

Manufacturer:

Analog Devices ↗

File Size:

933.87kb

Download:

📄 Datasheet

Description:

Logarithmic detector/controller. The HMC713MS8(E) Logarithmic Detector/Controller is ideal for converting RF signals with frequencies in the 45 MHz to 2700 MHz range,

HMC713MS8 Application

• Applications The HMC713MS8(E) is ideal for:
• Cellular Infrastructure
• WiMAX, WiBro & LTE/4G
• Power Monitoring & Control C
