HMC716LP3 - Low Noise Amplifier SMT

Product Overview

Hittite Microwave Corporation

Datasheet Details

Part number	HMC716LP3
Manufacturer	Hittite Microwave Corporation
File Size	391.41 KB
Description	Low Noise Amplifier SMT
Datasheet	HMC716LP3 Datasheet

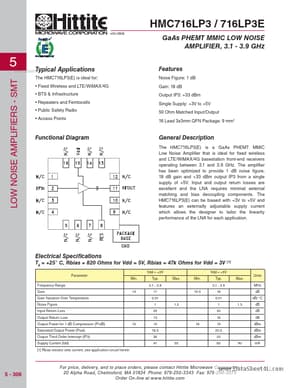

Additional preview pages of the HMC716LP3 datasheet.

Product details

Description

The HMC716LP3(E) is a GaAs PHEMT MMIC Low Noise Amplifier that is ideal for fixed wireless and LTE/WiMAX/4G basestation front-end receivers operating between 3.1 and 3.9 GHz.

Features

Noise Figure: 1 dB Gain: 18 dB Output IP3: +33 dBm Single Supply: +3V to +5V 50 Ohm Matched Input/Output 16 Lead 3x3mm QFN Package: 9 mm2 5 LOW NOISE.
