LT3750A

Capacitor Charger Controller

LT3750A Features

* n Charges Any Size Capacitor n Easily Adjustable Output Voltage n Drives High Current NMOS FETs n Primary-Side Sense

* No Output Voltage Divider Necessary n Wide Input Range: 3V to 24V n Drives Gate to VCC

* 2V n Available in 10-Lead MS Package APPLICATIONS n Emergency Warning Beacons

LT3750A General Description

The LT®3750A is a flyback converter designed to rapidly charge large capacitors to a user-adjustable target volt­ age. A patented boundary mode control scheme
* minimizes transition losses and reduces transformer size. The transformer turns ratio and two external resistors easily adjust the outpu.

LT3750A Datasheet (1.16 MB)

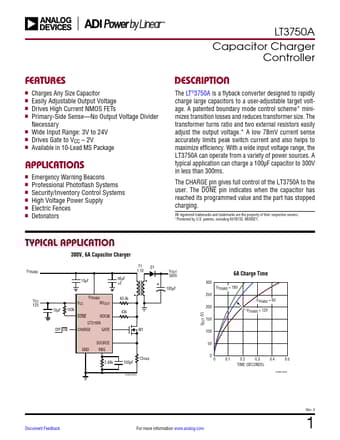

Preview of LT3750A PDF

Datasheet Details

Part number:

LT3750A

Manufacturer:

Analog Devices ↗

File Size:

1.16 MB

Description:

Capacitor charger controller.
