LT3757A, LT3757 Datasheet - Analog Devices

LT3757A - SEPIC and Inverting Controller

The LT®3757/LT3757A are wide input range, current mode, DC/DC controllers which are capable of generating either positive or negative output voltages.

They can be configured as either a boost, flyback, SEPIC or inverting converter.

The LT3757/LT3757A drive a low side external N-channel power MOSFET

LT3757A Features

* n Wide Input Voltage Range: 2.9V to 40V n Positive or Negative Output Voltage Programming with a Single Feedback Pin n Current Mode Control Provides Excellent Transient Response n Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor n Synchronizable to an External Clock n Low

LT3757-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: LT3757A, LT3757. Please refer to the document for exact specifications by model.

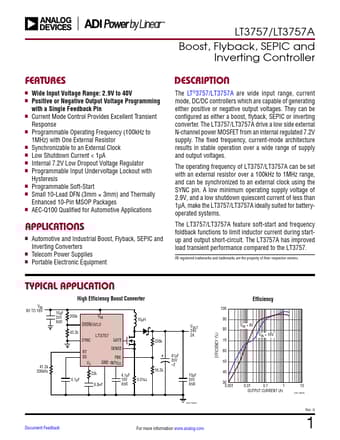

LT3757A Datasheet Preview Page 2 LT3757A Datasheet Preview Page 3

Datasheet Details

Part number:

LT3757A, LT3757

Manufacturer:

Analog Devices ↗

File Size:

1.32 MB

Description:

Sepic and inverting controller.

Note:

This datasheet PDF includes multiple part numbers: LT3757A, LT3757.
Please refer to the document for exact specifications by model.
