LTC2050HV, LTC2050 Datasheet - Analog Devices

LTC2050HV Zero-Drift Operational Amplifier

The LTC®2050 and LTC2050HV are zero-drift operational amplifiers available in the 5- or 6-lead SOT-23 and SO-8 packages. The LTC2050 operates from a single 2.7V to 6V supply. The LTC2050HV operates on supplies from 2.7V to ±5.5V. The current consumption is 800µA and the versions in the 6-lead SOT-23.

LTC2050HV Features

* nn Maximum Offset Voltage of 3µV nn Maximum Offset Voltage Drift of 30nV/°C nn Noise: 1.5µVP-P (0.01Hz to 10Hz Typ) nn Voltage Gain: 140dB (Typ) nn PSRR: 130dB (Typ) nn CMRR: 130dB (Typ) nn Supply Current: 0.8mA (Typ) nn Supply Operation nn LTC2050: 2.7V to 6V nn LTC2050HV: 2.7V to ±5.5V nn LTC2050H

LTC2050-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: LTC2050HV, LTC2050. Please refer to the document for exact specifications by model.

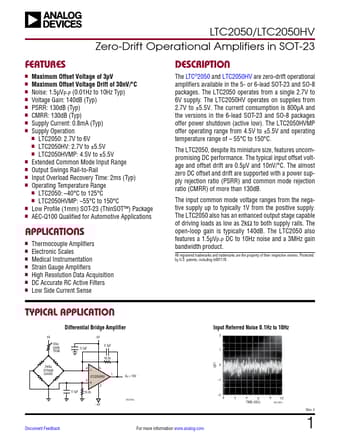

LTC2050HV Datasheet Preview Page 2 LTC2050HV Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2050HV, LTC2050

Manufacturer:

Analog Devices ↗

File Size:

1.13 MB

Description:

Zero-drift operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: LTC2050HV, LTC2050.
Please refer to the document for exact specifications by model.
