LTM8053-1

3.5A Step-Down Silent Switcher uModule Regulator

LTM8053-1 Features

* nn Complete Step-Down Switch Mode Power Supply nn Low Noise Silent Switcher® Architecture nn Wide Input Voltage Range: 3.4V to 40V nn Wide Output Voltage Range: 0.97V to 15V nn 3.5A Continuous Output Current at 12VIN, 5VOUT, TA = 85°C nn 6A Peak Output Current nn Parallelable for Increased Output Cu

LTM8053-1 General Description

The LTM®8053 is a 40VIN, 3.5A continuous, 6A peak stepdown µModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.4V to 40V, the LTM8053/LTM80531 supports an output volt.

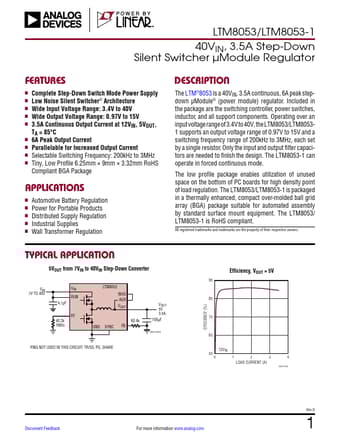

LTM8053-1 Datasheet (2.38 MB)

Preview of LTM8053-1 PDF

Datasheet Details

Part number:

LTM8053-1

Manufacturer:

Analog Devices ↗

File Size:

2.38 MB

Description:

3.5a step-down silent switcher umodule regulator.
