LTM8054

5.4A Buck-Boost uModule Regulator

LTM8054 Features

* nn Complete Buck-Boost Switch Mode Power Supply nn Wide Input Voltage Range: 5V to 36V nn Wide Output Voltage Range: 1.2V to 36V nn VIN May Be Greater than, Equal to or Less than VOUT nn 12V/1.8A Output from 6VIN nn 12V/3.4A Output from 12VIN nn 12V/5.4A Output from 24VIN nn Up to 94% Efficient nn A

LTM8054 General Description

The LTM®8054 is a 36VIN, buck-boost µModule® (micromodule) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are a.

LTM8054 Datasheet (608.05 KB)

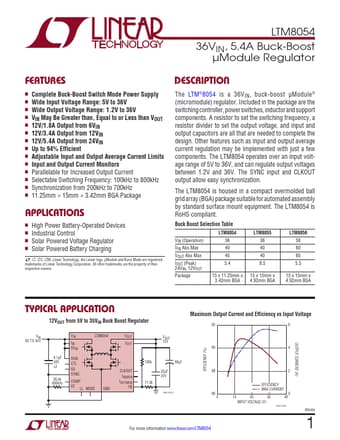

Preview of LTM8054 PDF

Datasheet Details

Part number:

LTM8054

Manufacturer:

Linear Technology

File Size:

608.05 KB

Description:

5.4a buck-boost umodule regulator.
