MAX13487E - Half-Duplex RS-485-Compatible Transceiver

Datasheet Summary

Description

The MAX13487E/MAX13488E +5V, half-duplex, ±15kV ESD-protected RS-485-compatible transceivers feature one driver and one receiver.

The MAX13487E/MAX13488E include a hot-swap capability to eliminate false transitions on the bus during power-up or live insertion.

Features

  • reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 500kbps. The MAX13488E driver slew rate is not limited, allowing transmit speeds up to 16Mbps. The MAX13487E/MAX13488E feature a 1/4-unit load receiver input impedance, allowing up to 128 transceivers on the bus. These devices are intended for half-duplex communications. All driver outputs are protected to ±15kV ESD using the Human Body Model. The MAX1.

📥 Download Datasheet

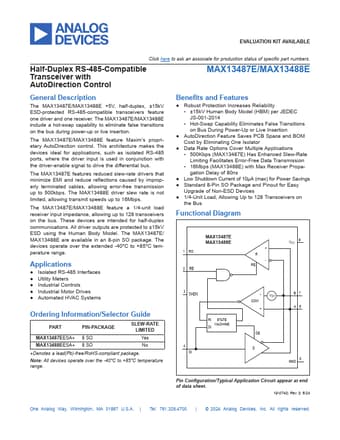

Datasheet preview – MAX13487E

Datasheet Details

Part number MAX13487E
Manufacturer Analog Devices
File Size 1.47 MB
Description Half-Duplex RS-485-Compatible Transceiver
Datasheet download datasheet MAX13487E Datasheet
Additional preview pages of the MAX13487E datasheet.

📁 Similar Datasheet

  • MAX13487E - Half-Duplex RS-485-/RS-422- Compatible Transceiver (Maxim Integrated Products)
  • MAX13481E - (MAX13481E - MAX13483E) ESD-Protected USB Transceivers (Maxim Integrated Products)
  • MAX13482E - (MAX13481E - MAX13483E) ESD-Protected USB Transceivers (Maxim Integrated Products)
  • MAX13483E - (MAX13481E - MAX13483E) ESD-Protected USB Transceivers (Maxim Integrated Products)
  • MAX13485E - (MAX13485E / MAX13486E) Half Duplex Transceiveer (Maxim Integrated Products)
  • MAX13486E - (MAX13485E / MAX13486E) Half Duplex Transceiveer (Maxim Integrated Products)
  • MAX13488E - Half-Duplex RS-485-/RS-422- Compatible Transceiver (Maxim Integrated Products)
  • MAX134 - 3 Digit DMM Circuit (Maxim)
  • MAX1343 - Multichannel ADCs/DACs (Maxim Integrated)
  • MAX13430E - RS-485 Transceivers (Maxim Integrated Products)
Other Datasheets by Analog Devices
  • MAX13488E - Half-Duplex RS-485-Compatible Transceiver
  • MAX12900 - Ultra-Low-Power 4-20mA Sensor Transmitter
  • MAX14663 - Portable Medical Power Management
  • MAX15106A - Synchronous Step-Down Switching Regulator
  • MAX15106B - Synchronous Step-Down Switching Regulator
  • MAX15106C - Synchronous Step-Down Switching Regulator
  • MAX15462 - Synchronous Step-Down DC-DC Converters
  • MAX16165 - 4-Channel Sequencer and Superviso

Full PDF Text Transcription

Click to expand full text
EVALUATION KIT AVAILABLE Click here to ask an associate for production status of specific part numbers. Half-Duplex RS-485-Compatible Transceiver with AutoDirection Control MAX13487E/MAX13488E General Description The MAX13487E/MAX13488E +5V, half-duplex, ±15kV ESD-protected RS-485-compatible transceivers feature one driver and one receiver. The MAX13487E/MAX13488E include a hot-swap capability to eliminate false transitions on the bus during power-up or live insertion. The MAX13487E/MAX13488E feature Maxim’s proprietary AutoDirection control. This architecture makes the devices ideal for applications, such as isolated RS-485 ports, where the driver input is used in conjunction with the driver-enable signal to drive the differential bus.
