MAX13483E, MAX13481E (MAX13481E - MAX13483E) ESD-Protected USB Transceivers

MAX13483E Description

www.DataSheet4U.com 19-3801; Rev 2; 1/06 ±15kV ESD-Protected USB Transceivers with External/Internal Pullup Resistors General .
The MAX13481E/MAX13482E/MAX13483E ±15kV ESDprotected USB-compliant transceivers interface lowvoltage ASICs with USB devices.

MAX13483E Features

* Active-Low Enumeration Input Controls D+ Pullup Resistor (MAX13482E)
* Active-Low Enumeration Input Controls Internal Pullup Switch (MAX13481E)
* ±15kV ESD Protection on D+ and D
* USB 2.0 Full-Speed Compliant Transceiver
* VBUS Detection (MAX13482E/MAX13483E

MAX13483E Applications

* Cell Phones PDAs Digital Still Cameras Selector Guide PART MAX13481EETE MAX13482EETE MAX13483EETE ENUM INPUT ✓ ✓
* INTERNAL 1.5kΩ RESISTOR
* ✓
* VBUS DETECTION
* ✓ ✓ PART Ordering Information PIN-PACKAGE TOP MARK ADF ADI ADJ PKG CODE T1633-4 T1633-4 T1633-4 MAX1348

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX13483E, MAX13481E. Please refer to the document for exact specifications by model.

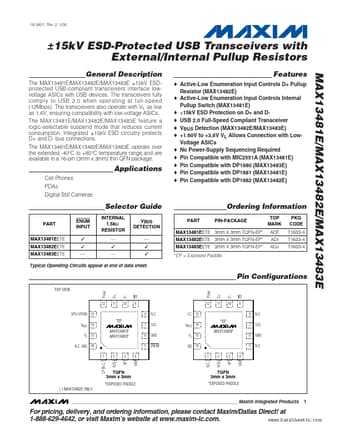

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX13483E, MAX13481E
Manufacturer
Maxim Integrated ↗ Products
File Size
334.17 KB
Datasheet
MAX13481E_MaximIntegratedProducts.pdf
Description
(MAX13481E - MAX13483E) ESD-Protected USB Transceivers
Note
This datasheet PDF includes multiple part numbers: MAX13483E, MAX13481E.
Please refer to the document for exact specifications by model.
