MAX13431E, MAX13430E RS-485 Transceivers

📥 Download Datasheet  Datasheet Preview Page 1

Description

AVAILABLE MAX13430E *MAX13433E RS-485 Transceivers with Low-Voltage Logic Interface General .
The MAX13430E. MAX13433E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX13431E, MAX13430E. Please refer to the document for exact specifications by model.

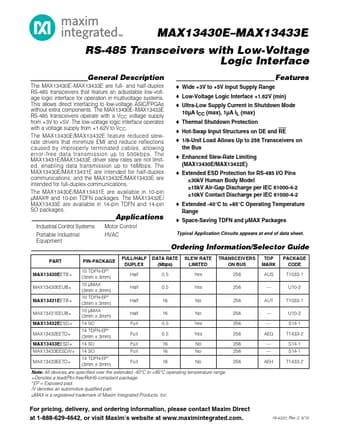

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MAX13431E, MAX13430E
Manufacturer
Maxim Integrated ↗ Products
File Size
604.44 KB
Datasheet
MAX13430E_MaximIntegratedProducts.pdf
Description
RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: MAX13431E, MAX13430E.
Please refer to the document for exact specifications by model.

Features

* Wide +3V to +5V Input Supply Range
* Low-Voltage Logic Interface +1.62V (min)
* Ultra-Low Supply Current in Shutdown Mode 10µA ICC (max), 1µA IL (max)
* Thermal Shutdown Protection
* Hot-Swap Input Structures on DE and RE
* 1/8-Unit Load Allows Up to
