MAX17225 - nanoPower Synchronous Boost Converters

Product Overview

Analog Devices

Datasheet Details

Part number	MAX17225
Manufacturer	Analog Devices
File Size	1.00 MB
Description	nanoPower Synchronous Boost Converters
Datasheet	MAX17225 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX17225, MAX17220. Please refer to the document for exact specifications by model.

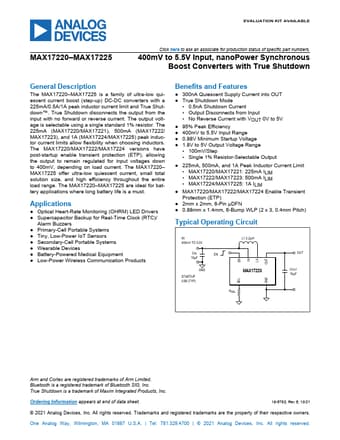

Additional preview pages of the MAX17225 datasheet.

Product details

Description

The MAX17220 MAX17225 is a family of ultra-low quiescent current boost (step-up) DC-DC converters with a 225mA/0.5A/1A peak inductor current limit and True Shutdown™.

Features

300nA Quiescent Supply Current into OUT.
True Shutdown Mode.
0.5nA Shutdown Current.
Output Disconnects from Input.
No Reverse Current with VOUT 0V to 5V.
95% Peak Efficiency.
400mV to 5.5V Input Range.
0.88V Minimum Startup Voltage.
1.8V to 5V Output Voltage Range.
100mV/Step.
Single 1% Resistor-Selectable Output.
225mA, 500mA, and 1A Peak Inductor Current Limit.
MAX17220/MAX17221: 225mA ILIM.
MAX.
