MAX1722 - Step-Up DC-DC Converters

Product Overview

Maxim

📥 Download Datasheet

MAX1722 Step-Up DC-DC Converters by Maxim - Datasheet Preview — Datasheet preview – MAX1722

Datasheet Details

Part number	MAX1722
Manufacturer	Maxim
File Size	529.93 KB
Description	Step-Up DC-DC Converters
Datasheet	MAX1722 Datasheet

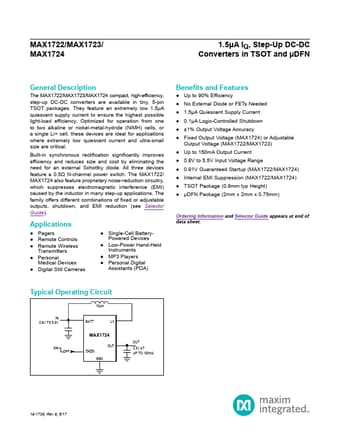

Additional preview pages of the MAX1722 datasheet.

Product details

Description

The MAX1722/MAX1723/MAX1724 compact, high-efficiency, step-up DC-DC converters are available in tiny, 5-pin TSOT packages.

Features

Up to 90% Efficiency.
No External Diode or FETs Needed.
1.5μA Quiescent Supply Current.
0.1μA Logic-Controlled Shutdown.
±1% Output Voltage Accuracy.
Fixed Output Voltage (MAX1724) or Adjustable Output Voltage (MAX1722/MAX1723).
Up to 150mA Output Current.
0.8V to 5.5V Input Voltage Range.
0.91V Guaranteed Startup (MAX1722/MAX1724).
Internal EMI Suppression (MAX1722/MAX1724).
TSOT Packa.
