MAX20406 - Automotive 36V Synchronous Silent Switcher Buck Converters

Download the MAX20406 datasheet PDF. This datasheet also covers the MAX20404 variant, as both devices belong to the same automotive 36v synchronous silent switcher buck converters family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX20404/MAX20405/MAX20406/MAX20406E ICs are tiny, low EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches.

The ICs are designed to deliver up to 6A with wide input voltages range from 3V to 36V.

Features

  • the MAXQ® power architecture, which provides precision transient performance and phase margin. This allows obtaining the maximum power, performance, and precision while minimizing system cost for any specific.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX20404-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MAX20406
Manufacturer Analog Devices
File Size 3.28 MB
Description Automotive 36V Synchronous Silent Switcher Buck Converters
Datasheet download datasheet MAX20406 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX20408 Automotive 36V 8A/10A Fully-Integrated Buck Converter Maxim Integrated
MAX204 +5V RS-232 Transceivers with 0.1uF External Capacitors Maxim
MAX2041 Upconversion / Downconversion Mixer Maxim Integrated Products
MAX20410 Automotive 36V 8A/10A Fully-Integrated Buck Converter Maxim Integrated
MAX2042 2000MHz to 3000MHz Upconversion/Downconversion Mixer Maxim Integrated Products

Other Datasheets by Analog Devices

Part Number Description
MAX20402 Fully Integrated Synchronous Silent Switcher Buck Converters
MAX20403 Fully Integrated Synchronous Silent Switcher Buck Converters
MAX20404 Automotive 36V Synchronous Silent Switcher Buck Converters
MAX20405 Automotive 36V Synchronous Silent Switcher Buck Converters
MAX20408 Fully Integrated Buck Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

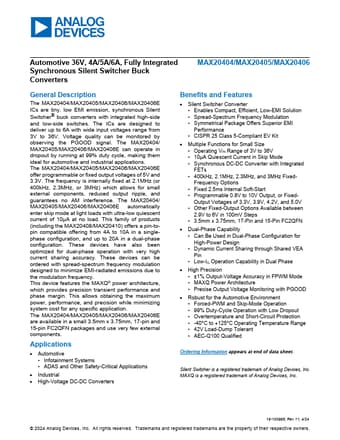

Automotive 36V, 4A/5A/6A, Fully Integrated Synchronous Silent Switcher Buck Converters MAX20404/MAX20405/MAX20406 General Description The MAX20404/MAX20405/MAX20406/MAX20406E ICs are tiny, low EMI emission, synchronous Silent Switcher® buck converters with integrated high-side and low-side switches. The ICs are designed to deliver up to 6A with wide input voltages range from 3V to 36V. Voltage quality can be monitored by observing the PGOOD signal. The MAX20404/ MAX20405/MAX20406/MAX20406E can operate in dropout by running at 99% duty cycle, making them ideal for automotive and industrial applications. The MAX20404/MAX20405/MAX20406/MAX20406E offer programmable or fixed output voltages of 5V and 3.3V. The frequency is internally fixed at 2.1MHz (or 400kHz, 2.
