MAX40005 - nanoPower 4-Bump Comparator

This page provides the datasheet information for the MAX40005, a member of the MAX40002 nanoPower 4-Bump Comparator family.

Datasheet Summary

Description

The MAX40002 MAX40005 and MAX40012

MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints.

Features

  • Tiny 0.73mm x 0.73mm, 4-Bump WLP and 5-Pin SOT23 Packages Save Board Space.
  • Ultra-Low 500nA Operating Current Preserves Battery Power in.

📥 Download Datasheet

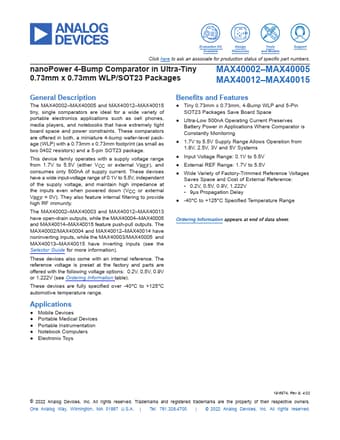

Datasheet preview – MAX40005

Datasheet Details

Part number MAX40005
Manufacturer Analog Devices
File Size 850.94 KB
Description nanoPower 4-Bump Comparator
Datasheet download datasheet MAX40005 Datasheet
Additional preview pages of the MAX40005 datasheet.

📁 Similar Datasheet

  • MAX40005 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX4000 - 2.5GHz 45dB RF-Detecting Controllers (Maxim)
  • MAX40000 - 1.7V nanoPower Comparators (Maxim Integrated)
  • MAX40001 - 1.7V nanoPower Comparators (Maxim Integrated)
  • MAX40002 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX40003 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX40004 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX40007 - nanoPower Op Amp (Maxim Integrated)
  • MAX400 - Ultra Low Offset Voltage Operational Amplifier (Maxim)
  • MAX4001 - 2.5GHz 45dB RF-Detecting Controllers (Maxim)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Evaluation Kit Available Design Resources Tools and Models Support Click here to ask an associate for production status of specific part numbers. nanoPower 4-Bump Comparator in Ultra-Tiny 0.73mm x 0.73mm WLP/SOT23 Packages MAX40002–MAX40005 MAX40012–MAX40015 General Description The MAX40002–MAX40005 and MAX40012–MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump wafer-level package (WLP) with a 0.73mm x 0.73mm footprint (as small as two 0402 resistors) and a 5-pin SOT23 package. This device family operates with a supply voltage range from 1.7V to 5.
