MAX40000 - 1.7V nanoPower Comparators

Datasheet Summary

Description

The MAX40000/MAX40001 are tiny, single comparators with built-in voltage references that are ideal for a wide variety of portable electronics applications, such as cell phones, portable instruments, and notebooks that have extremely tight board space and power constraints.

Features

  • Micropower Operating Current (0.9µA typ, 1.7µA max) Preserves Battery Power.
  • Tiny 1.11mm x 0.76mm 6-Bump WLP and SOT23 Packages Save Board Space.
  • Internal Precision Reference Saves Space and Cost of an External Reference.
  • < 1% at Room Temperature, < 2.5% Over Temp Reference.
  • Multiple Reference Voltages (1.252V, 1.66V, 1.94V, and 2.22V).
  • Input Voltage Range = -0.2V to 5.7V.
  • Supply Voltage Range (1.7V to 5.5V) Allows Operation.

📥 Download Datasheet

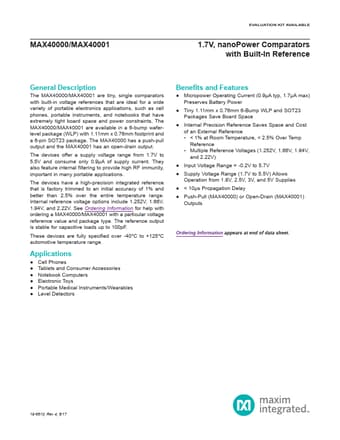

Datasheet preview – MAX40000
