OP27 Datasheet, Amplifier, Analog Devices

OP27 Features

  • Amplifier PIN CONFIGURATIONS Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/√Hz Low drift: 0.2 µV/°C High speed: 2.8 V/µs slew rate, 8 MHz gain bandwidth Low VOS: 10 µV CMRR: 126 dB at VCM of ±11

PDF File Details

Part number:

OP27

Manufacturer:

Analog Devices ↗

File Size:

326.67kb

Download:

📄 Datasheet

Description:

Low-noise / precision operational amplifier. The OP27 precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise. Offsets do

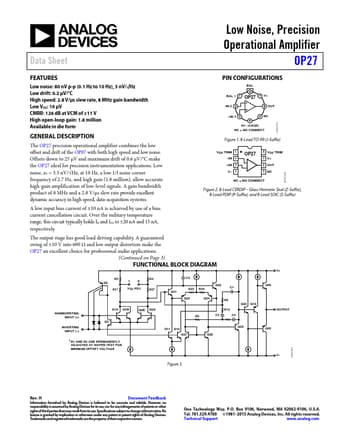

Datasheet Preview: OP27 📥 Download PDF (326.67kb)
Page 2 of OP27 Page 3 of OP27

OP27 Application

  • Applications Low noise, en = 3.5 nV/√Hz, at 10 Hz, a low 1/f noise corner frequency of 2.7 Hz, and high gain (1.8 million), allow accurate high-gai
