RH1013M - Dual Precision Operational Amplifier

RH1013M Description

RH1013M Dual Precision Operational Amplifier .
The RH1013M is the first precision dual operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM158/MC1558/OP-221 p.

RH1013M Applications

* ABSOLUTE MAXIMUM RATINGS Supply Voltage ±22V Differential Input Voltage ±30V Input Voltage Equal to Positive Supply Voltage 5V Below Negative Supply Voltage Output Short-Circuit Duration Indefinite Operating Temperature Range
* 55°C to 125°C Storage Temperature Range
* 65°C to 1

📥 Download Datasheet

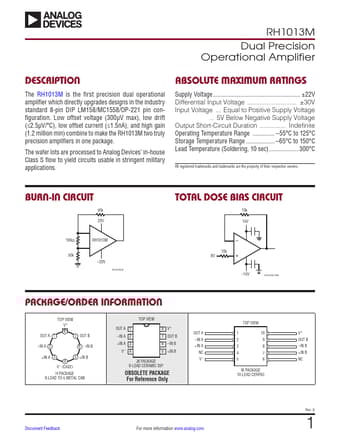

Preview of RH1013M PDF
datasheet Preview Page 2 datasheet Preview Page 3
