RH1014M Datasheet - Linear Technology

RH1014M Quad Precision Operational Amplifier

RH1014M Quad Precision Operational Amplifier DESCRIPTIO ABSOLUTE AXI U RATI GS The RH1014M is the first precision quad operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM124/LM148/OP-11/5156 pin configuration. Low offset voltage (300µV max), low drift ( 2.5µV/°C), low offset current ( 1.5nA), and high gain (1.2 million min) combine to make the RH1014M four truly precision amplifers in one package. The wafer lots are processed to Linear Technology’s inh.

RH1014M_LinearTechnology.pdf

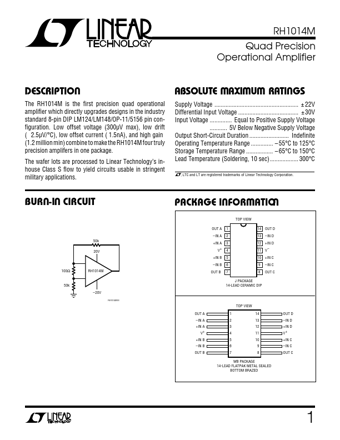

Preview of RH1014M PDF
RH1014M Datasheet Preview Page 2 RH1014M Datasheet Preview Page 3

Datasheet Details

Part number:

RH1014M

Manufacturer:

Linear Technology

File Size:

196.03 KB

Description:

Quad precision operational amplifier.
