RH1013M Datasheet - Linear Technology

RH1013M Dual Precision Operational Amplifier

RH1013M Dual Precision Operational Amplifier U W W TOP VIEW 10 9 8 7 6 DESCRIPTIO ABSOLUTE The RH1013M is the first precision dual operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM158/MC1558/OP-221 pin configuration. Low offset voltage (300µV max), low drift ( 2.5µV/ °C), low offset current ( 1.5nA), and high gain (1.2 million min) combine to make the RH1013M two truly precision amplifers in one package. The wafer lots are processed to Linear Technolo.

RH1013M Datasheet (197.33 KB)

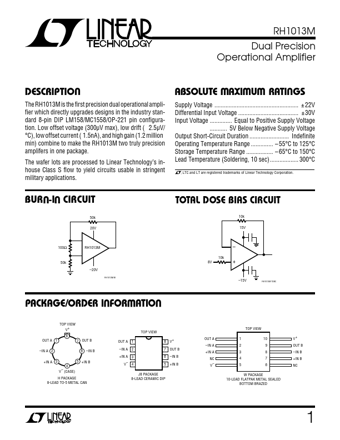

Preview of RH1013M PDF
RH1013M Datasheet Preview Page 2 RH1013M Datasheet Preview Page 3

Datasheet Details

Part number:

RH1013M

Manufacturer:

Linear Technology

File Size:

197.33 KB

Description:

Dual precision operational amplifier.
