SSM2024 - Quad Current Controlled Amplifier

Datasheet Summary

Description

The SSM2024 is a quad Class A noninverting current-controlled transconductance amplifier.

Each of the four VCAs is completely independent and includes a ground referenced linear current gain control.

These voltage-in/current-out amplifiers offer over 82 dB S/N at 0.3% THD.

Features

  • Four VCAs in One Package Ground Referenced Current Control Inputs 82 dB S/N at 0.3% THD Full Class A Operation.
  • 40 dB Control Feedthrough (Untrimmed) Easy Signal Summing 6% Gain Matching.

📥 Download Datasheet

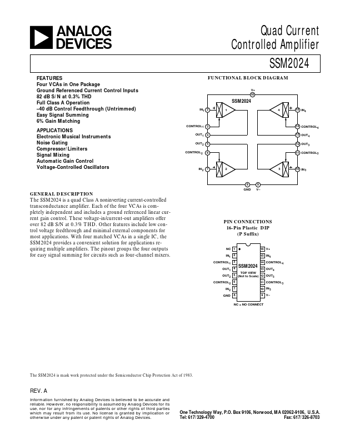

Datasheet preview – SSM2024

Datasheet Details

Part number SSM2024
Manufacturer Analog Devices
File Size 89.90 KB
Description Quad Current Controlled Amplifier
Datasheet download datasheet SSM2024 Datasheet
Additional preview pages of the SSM2024 datasheet.

📁 Similar Datasheet

  • SSM2024 - QUAD CURRENT CONTROLLED AMPLIFIER (ETC)
  • SSM2020 - DUAL LINEAR ANTILOG VOLTAGE CONTROLLED AMPLIFIER (ETC)
  • SSM2022 - DUAL LINEAR ANTILOG VOLTAGE CONTROLLED AMPLIFIER (ETC)
  • SSM2000 - HUSH Stereo Noise Reduction (Analog)
  • SSM2005 - Decoder 5.1-Channel Soundfield Generator (Analog)
  • SSM200UF-A - (SSMxxxUF-A) HERMETIC ULTRAFAST DIODE (Sensitron)
  • SSM200UF3A - (SSMxxxUF3A) HERMETIC ULTRAFAST DIODE (Sensitron)
  • SSM2011 - Audio Preamplifier System (Solid State Micro Technology)
  • SSM2013 - VOLTAGE CONTROLLED AMPLIFIER (ETC)
  • SSM2014 - OPERATIONAL VOLTAGE CONTROLLED ELEMENT (ETC)
Other Datasheets by Analog Devices
  • SSM2120 - (SSM2120 / SSM2122) Dynamic Range Processors/Dual VCA
  • SSM2122 - (SSM2120 / SSM2122) Dynamic Range Processors/Dual VCA
  • SSM2126 - Dolby Pro-Logic Surround Matrix Decoder
  • SSM2161 - Master/Balance Volume Controls
  • SSM2210 - Audio Dual Natched NPN transistor
  • SSM2211 - Low Distortion 1.5W Audio Power Amplifier
  • SSM2212 - Dual-Matched NPN Transistor
  • SSM2220 - Audio Dual Natched PNP transistor

Full PDF Text Transcription

Click to expand full text
a FEATURES Four VCAs in One Package Ground Referenced Current Control Inputs 82 dB S/N at 0.3% THD Full Class A Operation –40 dB Control Feedthrough (Untrimmed) Easy Signal Summing 6% Gain Matching APPLICATIONS Electronic Musical Instruments Noise Gating Compressor/Limiters Signal Mixing Automatic Gain Control Voltage-Controlled Oscillators GENERAL DESCRIPTION The SSM2024 is a quad Class A noninverting current-controlled transconductance amplifier. Each of the four VCAs is completely independent and includes a ground referenced linear current gain control. These voltage-in/current-out amplifiers offer over 82 dB S/N at 0.3% THD. Other features include low control voltage feedthrough and minimal external components for most applications.
